Radiant Rollout Mats

Radiant Rollout Mats

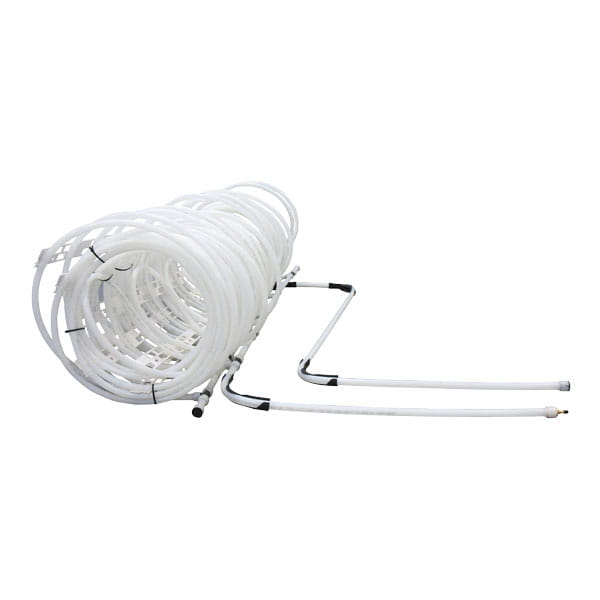

Radiant Rollout™ Mats provide a fast, efficient and consistent method for installing radiant heating and cooling systems in large commercial areas — reducing required manifold ports by more than 60%, reducing wire ties and staples by up to 30%, and improving installation time by up to 85%, helping projects stay on schedule, providing worker safety (by minimizing knee and back strain), and offering dependable commissioning with pre-pressurized tubing and self-balancing circuits. In addition, the reverse-return header option in the mats offers material savings on manifolds and other ancillary installation components.

Note: Because the Radiant Rollout Mat is a custom-made product, contact Uponor Design Services at design.services@uponor.com or 888.594.7726 for availability, pricing, and to request the Radiant Rollout Mat Design Request Form. Lead times for delivery vary from four to eight weeks. Mats ship F.O.B. destination.

Download submittal

Find a distributor

Availability of specific products varies by distributor.

Documents

281 KB

Uponor Radiant Rollout Mats | Sell Sheet

Learn about product features and the benefits of installing radiant rollout mats for radiant heating and cooling systems.

2 MB

Uponor Radiant Rollout Mats | Instruction sheet

Instruction sheet for Uponor Radiant Rollout Mat. Installation instructions for radiant heating and cooling systems in large, open-area commercial applications.
