Manifold installation guide
Installation guide for Uponor engineered polymer (EP) heating manifold. Detailed instructions for installing EP heating manifold for radiant heating and cooling systems.
EP heating manifolds

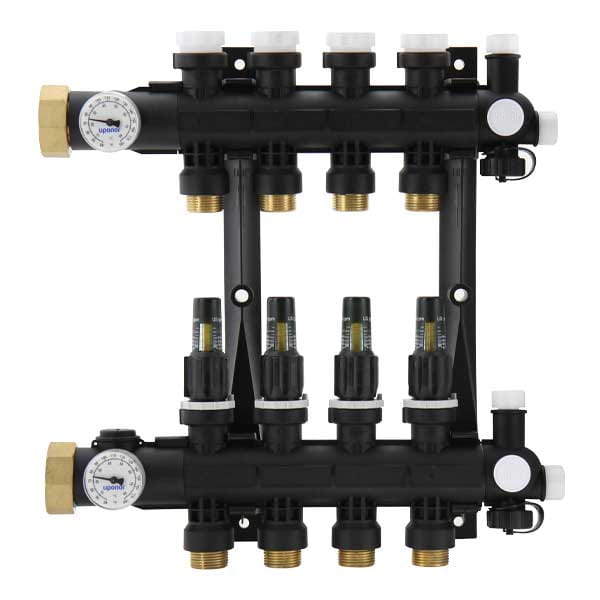

EP heating manifold assemblies feature isolation valves and balancing valves with flow meters, and come fully assembled, ready for installation. The manifolds are available in 2- through 8-loop configurations with a maximum flow of 15.4 gpm. The body ends feature R32 unions and the loop outlets have R20 male threads. The manifold mounts on a bracket (A2670006) that comes with the assembly.Pressure and temperature ratings:
- 87 psi at 140°F (60°C)
- 72 psi at 158° (70°C)
- 58 psi at 176°F (80°C)
- 44 psi at 194°F (90°C)
Find a distributor
Availability of specific products varies by distributor.
Item details
Documents
Technical manual
Similar products
EP heating manifold single sections with balancing valve and flow meter
EP heating manifold single sections with balancing valve and flow meter (0-1 gpm) are a single loop add-on used on the supply side for EP heating manifold assemblies (A2670201 through A2670801).
EP heating manifold flow meter valve bodies
EP heating manifold flow meter valve bodies (0-1 GPM) replace the flow meter valve on the supply manifold.
EP heating manifold single sections with isolation valves
EP heating manifold single sections with isolation valve are a single loop add-on used on the return side for EP heating manifold assemblies (A2670201 through A2670801)
EP heating manifold isolation valve bodies
EP heating manifold isolation valve bodies replace the isolation valve on the return manifold.
