Stainless-steel manifold assembly, 1" with flow meter

Stainless-steel manifold assembly, 1" with flow meter

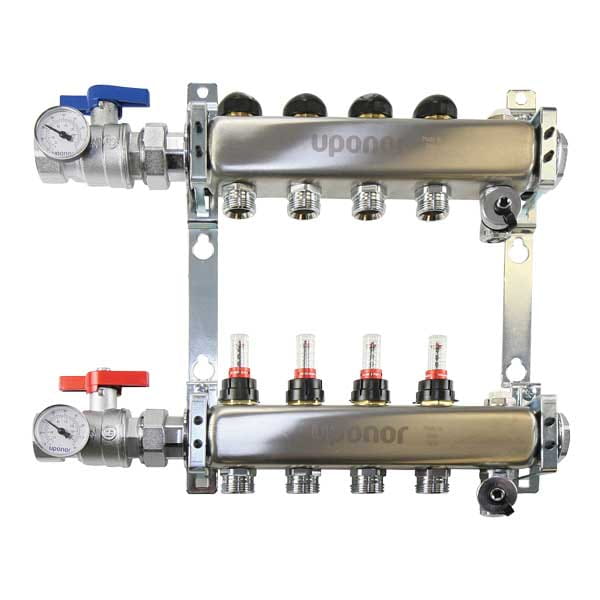

Stainless-steel manifolds feature isolation valves, balancing valves with flow meters, supply and return ball valves with temperature gauges, and come fully assembled, ready for installation. Targeted for commercial and residential radiant heating and cooling applications, the manifolds are available in 1" and 114" sizes. All manifold supply and return ball valves feature 1" NPT thread except for 114" manifold assemblies with 8, 10 and 12 loops which feature 114" NPT. Note: The 114" manifolds with 2 through 7 loops are strategically designed with 1" NPT ball valves to avoid adding extra costs while maintaining the maximum flow of the manifold assembly.
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Item details

NameStatus
Detail
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink
ActiveDownload submittalproductFamilyDetail/tab/itemDetails/detailLink

Documents

723 KB

Stainless Steel Manifold installation guide

Installation guide for Uponor stainless steel manifold. Follow the guide for recommendations to ensure proper installation of stainless steel manifold.

Similar products

Copper (type L) valveless manifolds

Copper (type L) valveless manifolds

Copper valveless manifolds with 1/2" or 3/4" nominal branches are available in various outlet configurations. The manifolds can join together to create the desired number of outlets. Branches are brazed to the manifold trunk. Use Uponor QS-style or ProPEX 1/2" or 3/4" brass sweat adapters to make connections to 3/8", 1/2", 5/8" and 3/4" Uponor AquaPEX tubing. All manifolds require a 1" copper end cap and applicable transition fitting.Note: Maximum recommended flow rates for these manifolds are: 2", 45 gpm; 1 1/2", 21 gpm; 1",9 gpm.



This product is made to order, please contact customer service for lead time.

Copper valved manifolds with ProPEX ball and balancing valves

Copper valved manifolds with ProPEX ball and balancing valves

Copper valved manifolds with ProPEX ball valves are made of type L copper and feature 58" and 34" nominal branches that are 4" on center. The manifolds are available in 12-outlet configurations. The maximum recommended flow to the manifold based on manifold body diameter is 45 gpm. Note: ProPEX tool is required. ProPEX rings must be purchased separately.

This product is made to order, please contact customer service for lead time.

ProPEX (type L) copper lead-free (LF) valved manifolds

ProPEX (type L) copper lead-free (LF) valved manifolds

Uponor's 1" Copper Manifold with Lead-free Brass 12" ProPEX® Ball Valve provides simple and easy isolation of individual loops.1 Sections can sweat together to extend the number of outlets using a standard 1" copper coupling. Both 1" ends are copper pipe size and require a copper end cap, coupling or transition fitting to make the proper system connection. Do not exceed accepted flow rates for 1" nominal copper.



This product is made to order, please contact customer service for lead time.

TruFLOW Classic assemblies with balancing and isolation valves

TruFLOW Classic assemblies with balancing and isolation valves

TruFLOW manifold assemblies with balancing and isolation valves come fully assembled and ready for installation. The assemblies are shipped with the appropriate number of TruFLOW manifold actuator adapters (A2630028). Maximum recommended flow to the manifold is 14 gpm for Jr. (1" barrel diameter) and 21 gpm for Classic (114" barrel diameter).
