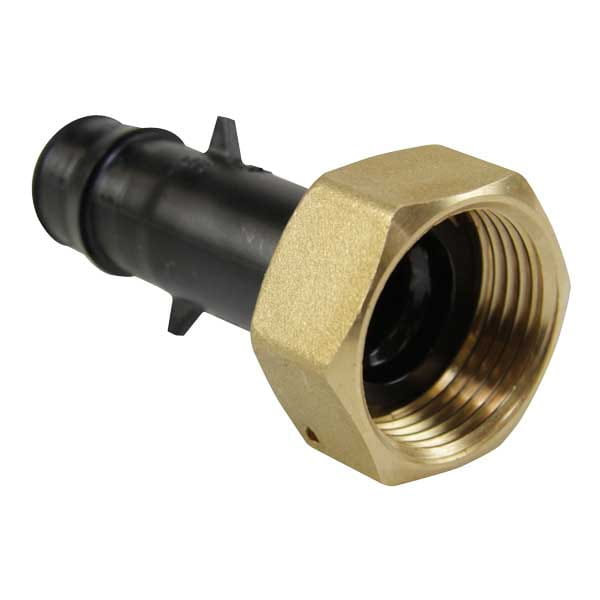

ProPEX engineered polymer (EP) water meter fittings
Targeted for commercial multifamily sub-metering as well as residential whole-home metering, Uponor's ProPEX water service offering is designed for direct connection to water meters sized 5⁄8" to 1".ProPEX EP water meter fittings provide a straight or 90-degree connection to water meters for 3⁄4" and 1" Uponor AquaPEX tubing. They are sold as a kit containing the fitting along with a gasket and two swivel nuts (EP nuts for plastic meters and metal nuts for metal meters).
Find a distributor
Availability of specific products varies by distributor.
