Ecoflex insulation kit instruction sheet
Instructions for installing straight, elbow and tee insulation kits for Uponor Ecoflex pre-insulated piping systems.

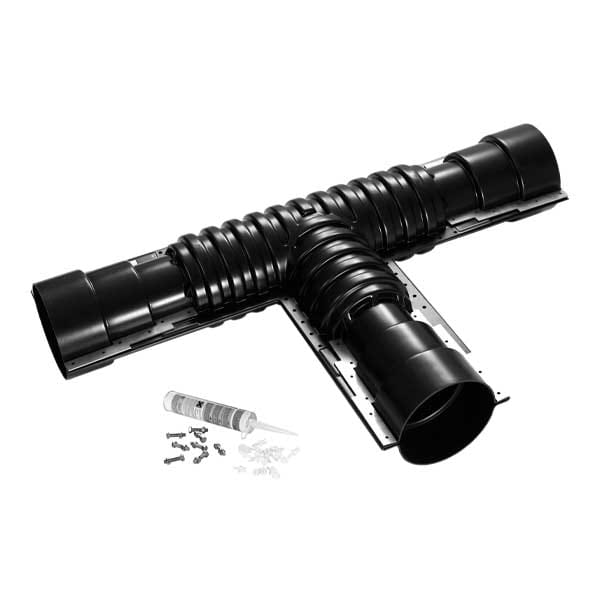

All pre-insulated pipe systems insulation kits make insulated connections of single or twin-style Ecoflex pre-insulated pipe with a jacket size of 5.5", 6.9" and 7.9". The kits feature two shells, stainless-steel bolts, plastic pins and joint-sealing compound. Note: Uponor ProPEX fittings and EPDM rubber end caps are required at all ends of the piping system to ensure system integrity. Tee insulation kit makes an insulated tee connection of single or twin-style Ecoflex pre-insulated pipe.
Name | Status | Detail | ||
---|---|---|---|---|
Active | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
Instructions for installing straight, elbow and tee insulation kits for Uponor Ecoflex pre-insulated piping systems.
Ecoflex® compression wall seals can be used with wall sleeves, or can be used alone where a field core drill is preferred. It creates a watertight seal between the core drill surface and the outer jacket of Ecoflex piping
All pre-insulated pipe systems insulation kits make insulated connections of single or twin-style Ecoflex pre-insulated pipe with a jacket size of 5.5", 6.9" and 7.9". The kits feature two shells, stainless-steel bolts, plastic pins and joint-sealing compound. Note: Uponor ProPEX fittings and EPDM rubber end caps are required at all ends of the piping system to ensure system integrity. Elbow insulation kit makes an insulated elbow connection of single or twin-style Ecoflex pre-insulated pipe.
WIPEX dezincification-resistant (DZR) compression fittings transition PEX service pipe to a male NPT thread for a watertight, leak-resistant system.
Shrink sleeves ensure a watertight seal between the Ecoflex pipe and the exterior of the connection vault. Shrink sleeves may also repair minor damage to the corrugated HPDE jacket of Ecoflex pipe.Note: Refer to the Pre-insulated Pipe Systems Design and Installation Manual for installation and repair procedures.
