Manifolds
Vario manifolds cover all radiant cooling applications
Uponor Vario manifolds are high quality manifolds made from different materials to cover all applications for radiant cooling. Synchronised components connections allow for easy connection to all Uponor pipe dimensions.
Not sure what you need? The overview helps to select the proper manifold.
Vario S
Vario M
Vario PLUS
Vario B
1
2
3
4
Material
Stainless steel
Glass fiber reinforced polyamide
Glass fiber reinforced polyamide
Brass
Construction
Segment
Segment
Modular
Modular
Heating circuits
2 - 16
2 - 15
1, 3, 4 and 6 loops
2, 3 and 4 loops
Secondary connection
G 3/4" eurocone
G 3/4" eurocone
G 3/4" eurocone
G 3/4" eurocone
Primary connection
G 1"
G 1"
G 1"
G 1"
Available with flow meters (optional)
✔
✔
✔
✔
Available with screw valve (optional)
✔
✔
✔
✔
Airvents and fill & drain
✔
✔
optional
optional
Uponor Vario manifold options and cabinets
Vario PLUS manifolds – modular plastic manifold
The manifold made of fibre-reinforced plastic
- Modular manifold available with 1, 3, 4 and 6 loops
- Loop connection G3/4" eurocone
- Can be supplied with or without flow indicator
- Loop pitch 50 mm
- Header pitch 225 mm
- Connection right or left with flat sealing or connection from below with optional elbowset,
- Supply with lockshield valve for balancing with adjusting ring (LS) or supply with Flowmeter for balancing (FM)
- Radiant heating and cooling
- Suitable for large heating/cooling areas
- Residential and commercial buildings
- Compact installation combined with pump groups, differential pressure regulator and metering sets connection set in Uponor distribution cabinets
- Vario PLUS
- Vario M
- Vario B
- Vario S
- Vario Cabinets
Discover more on underfloor cooling manifolds in our brochures

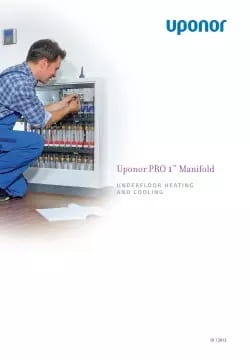

Uponor PRO 1" Manifold

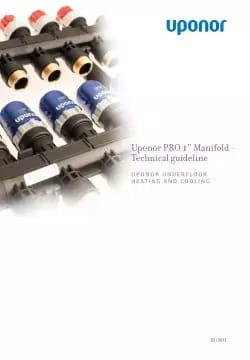

Uponor PRO 1" Manifold - Technical guideline

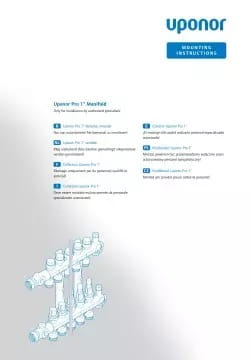

Uponor Pro 1" Manifold

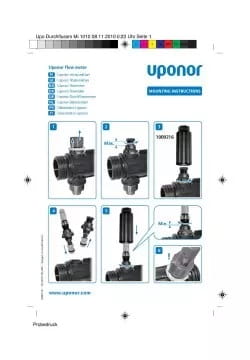

Uponor flow meter

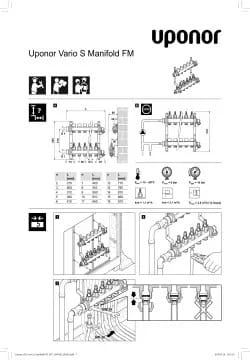

Uponor Vario S Manifold FM

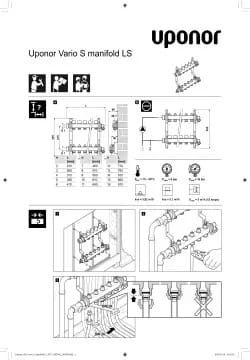

Uponor Vario S manifold LS

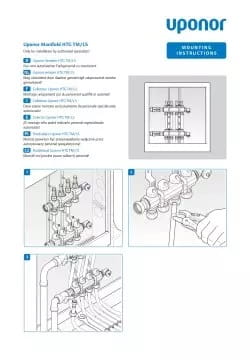

Uponor Manifold HTG TM/LS

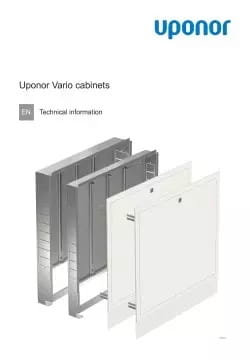

Uponor Vario cabinets
