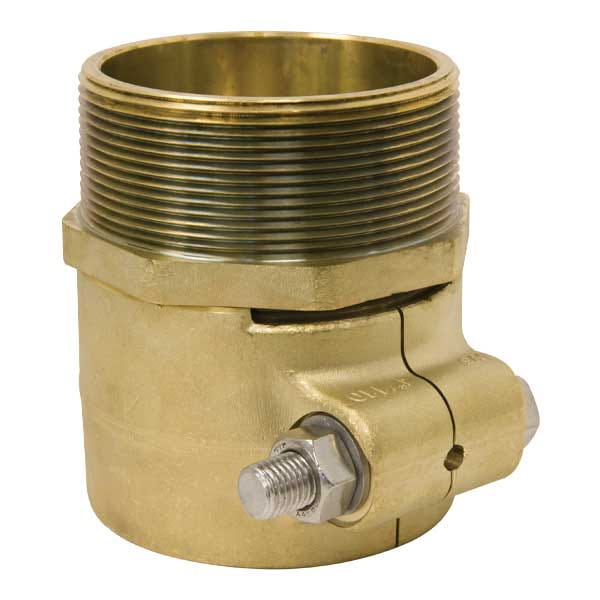

WIPEX Fitting 4" x 4" NPT
Part no.5550040
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | IMC|UMC |
|---|
Dimensions
| A [frac] | 5 33/64 inch |
|---|---|
| A [inch] | 5.52 inch |
| B [frac] | 5 35/64 inch |
| B [inch] | 5.551 inch |
| C [frac] | 4 23/32 inch |
| C [inch] | 4.724 inch |
| Weight per UOM [lbs/UOM] | 10 lbs/uom |
Listings
| Listings | IAPMO-ES |
|---|
Standards
| Standards | CSA B137.5|NSF/ANSI 14|ASTM F877 |
|---|
Technical Data
| End Size 1 [inch|mm] | 4" |
|---|---|
| End Size 2 [inch|mm] | 4" |
| End Type 1 | Compression |
| End Type 2 | MNPT |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Material o-ring | Ethylene propylene diene monomer (EPDM) rubber |
| Prop 65 label required? | Yes |
| Subcomponent Material | Body: DZR (dezincification-resistant) brass Clamp ring: DZR brass Bolt: Stainless steel Nut: Stainless steel Washer: Stainless steel |
