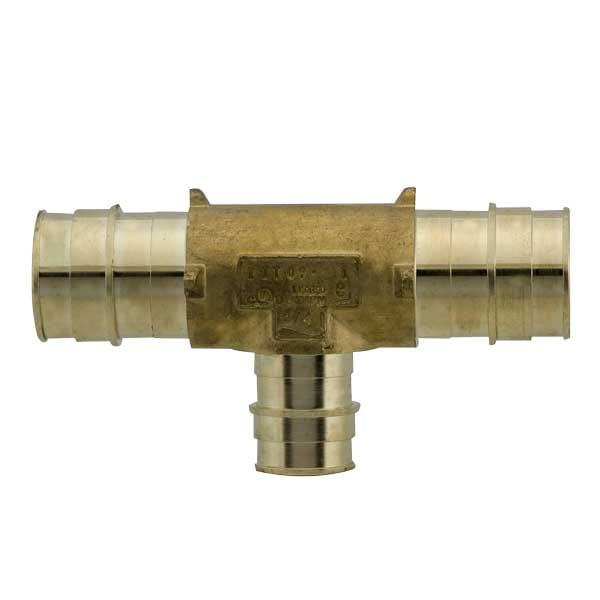

ProPEX LF Brass Reducing Tee, 3/4" PEX x 3/4" PEX x 1" PEX
Part no.LF4707710
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 15/16 inch |
|---|---|
| A [inch] | 0.945 inch |
| B [frac] | 55/64 inch |
| B [inch] | 0.865 inch |
| C [frac] | 55/64 inch |
| C [inch] | 0.865 inch |
| D [frac] | 15/16 inch |
| D [inch] | 0.945 inch |
| E [frac] | 9/16 inch |
| E [inch] | 0.559 inch |
| F [frac] | 1 3/16 inch |
| F [inch] | 1.181 inch |
| G [frac] | 3 5/8 inch |
| G [inch] | 3.62 inch |
| H [frac] | 2 19/64 inch |
| H [inch] | 2.295 inch |
| I [frac] | 1 29/64 inch |
| I [inch] | 1.46 inch |
| Weight per UOM [lbs/UOM] | 0.5 lbs/uom |
Listings
| Listings | cNSFus-pw-G-fs|ICC-ES-PMG|IAPMO 3558|U.P.Code |
|---|
Standards
| Standards | NSF/ANSI/CAN 372|ASTM F877|ASTM F1960|CSA B137.5|UL 1821|NSF/ANSI/CAN 61|NSF/ANSI 14 |
|---|
Technical Data
| End Size 1 [inch|mm] | 3/4" |
|---|---|
| End Size 2 [inch|mm] | 3/4" |
| End Size 3 [inch|mm] | 1" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| End Type 3 | ProPEX |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
