ProPEX; Adapter; Brass; female thread adapter; q5577510

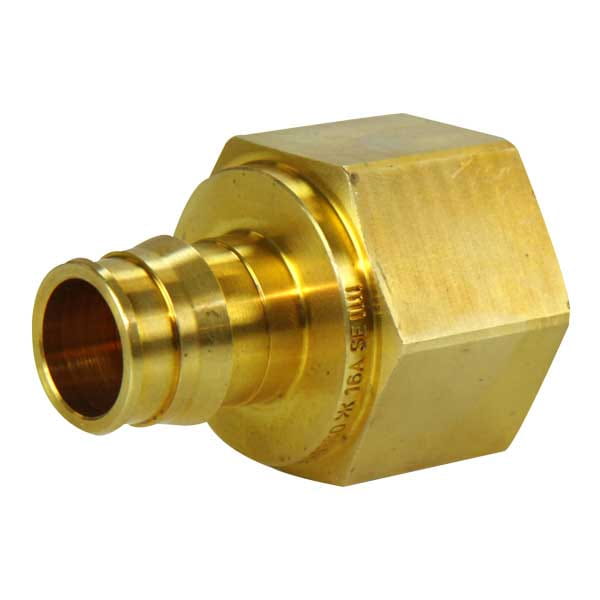

ProPEX Brass Female Threaded Adapter, 3/4" PEX x 1" NPT

Part no.Q5577510
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Item details

Part information and details

Codes

CodesIMC|IBC|IRC|NPC of Canada|UMC

Dimensions

A [frac]2 9/64 inch
A [inch]2.145 inch
B [frac]1 13/64 inch
B [inch]1.2 inch
C [frac]1 23/32 inch
C [inch]1.717 inch
D [frac]33/64 inch
D [inch]0.52 inch
E [frac]15/16 inch
E [inch]0.945 inch
F [frac]1 1/2 inch
F [inch]1.5 inch
G [frac]55/64 inch
G [inch]0.858 inch
Equivalent length through [ft]3.6 ft
Weight per UOM [lbs/UOM]0.4 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-rfh

Standards

StandardsASTM F1960|CSA B137.5|NSF-14|ASTM F877

Technical Data

Cv10.8
End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2FNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupBrass
Prop 65 label required?Yes
