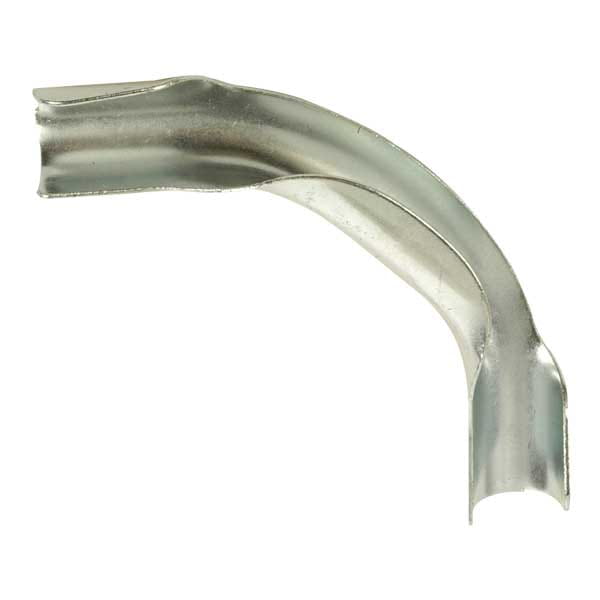

5/8" Metal Bend Support
Part no.A5110625
Find a distributor
Availability of specific products varies by distributor.
Item details
Part information and details
Dimensions
A [frac] | 4 63/64 inch |
---|---|
A [inch] | 4.98 inch |
B [frac] | 4 63/64 inch |
B [inch] | 4.98 inch |
C [frac] | 63/64 inch |
C [inch] | 0.984 inch |
D [frac] | 4 31/64 inch |
D [inch] | 4.488 inch |
E [frac] | 3 5/64 inch |
E [inch] | 3.079 inch |
F [frac] | 1 1/32 inch |
F [inch] | 1.033 inch |
Weight per UOM [lbs/UOM] | 0.16 lbs/uom |
Technical Data
Material group | Metal |
---|
