5216920

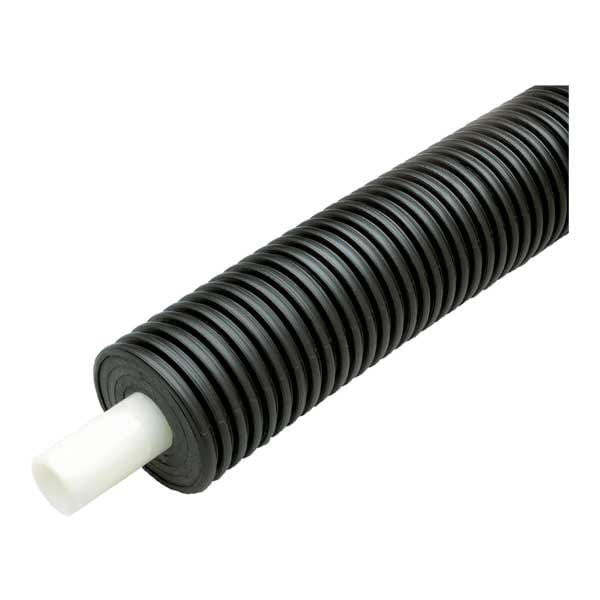

2" Potable PEX with 6.9" Jacket, 300-ft. coil

Part no.5216920
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Item details

Part information and details

Codes

CodesUPC|IPC|NPC of Canada|NSPC

Dimensions

Inner diameter coil [inch]6.9 inch
Outer diameter coil [inch]12 inch
Coil width [inch]6.9 inch
Inner diameter pipe [inch]1.629 inch
Outer diameter pipe [inch]2.125 inch
Weight per UOM [lbs/UOM]1.8 lbs/uom

Listings

ListingsU.P.Code

Standards

StandardsASTM F1960|CSA B137.5|NSF/ANSI/CAN 61|ASTM F876|NSF/ANSI 14|ASTM F2023|ASTM F877

Technical Data

Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupPEX
Material InsulationMultilayered, closed-cell, crosslinked insulation with a thermal conductivity of 0.25 BTU in./sq. ft./hour/°F, vapor permeability of 0.1g/100 sq. in./day
Pipe density [lb/ft³]0.0584 lb/ft³
R value8.9
Material Service PipeCrosslinked polyethylene (PEX-a) tubing; SDR-9
Thermal conductivity pipe [BTUin/ft²hrF°]0.22 btuin/ft²hrf°
Subcomponent MaterialJacket: Corrugated, seamless high-density polyethylene (HDPE); UV-protected
