Manifold Ball Valve instruction sheet
Instruction sheet for Uponor manifold supply and return ball valves. See how to remove, clean and replace the filter without draining the system.
Manifold supply and return ball valves

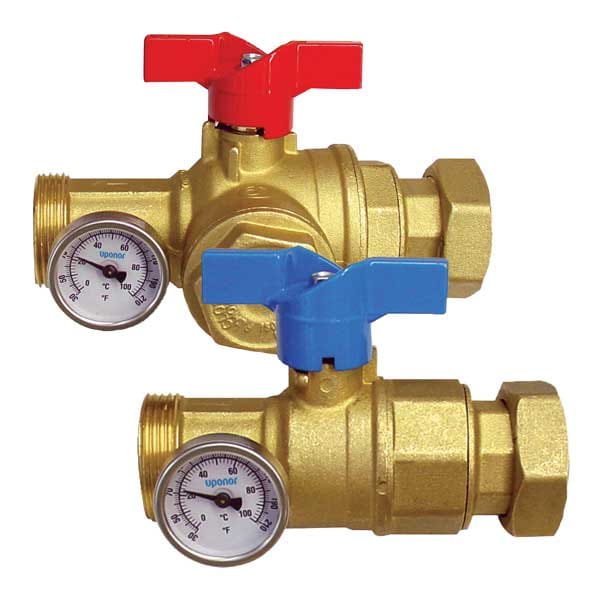

Manifold supply and return ball valves are full-flow, 11⁄4" ball valves with R32 male by R32 union nut that fits directly on the TruFLOW Jr., Classic and EP manifolds.
Find a distributor
Availability of specific products varies by distributor.
Item details
Documents
Technical manual
Similar products
Copper valved manifold accessories - 2" copper end cap spun end
Copper valved manifold accessories include various valves and end caps for use with Uponor copper valved manifolds.
ProPEX lead-free (LF) brass angle stop valves
For point-of-use shutoff at the fixture, ProPEX® straight and angle stop valves are lead-free (LF) brass, chrome-plated, quarter-turn ball valves that feature an ASTM F1960 connection for 1/2" Uponor AquaPEX® pipe and a 3/8" male threaded connection for fixture risers. For rigid fixture riser connections, use the Uponor ⅜" OD Compression Nut and Nylon Sleeve (part number F5440380), sold separately.
ProPEX brass ball valves
ProPEX brass ball valves are a cost-effective alternative for radiant heating/cooling and hydronic piping applications. Both ends are manufactured with the ProPEX fitting for connections to Uponor PEX pipe. The full-port valves are compatible with propylene glycol mixtures up to 50%. Stem extensions can be installed to accommodate up to 2" of pipe insulation.Note: ProPEX brass ball valves are not approved for potable-water applications.
Stainless-steel manifold supply and return ball valves
Stainless-steel manifold supply and return ball valves are R32 male by 1" FNPT or R32 male by 11⁄4" FNPT that fit directly on the stainless-steel manifold assemblies. The ball valves come standard with temperature gauges for easy visual check of supply and return temperatures.
