Powered zone control instruction sheet

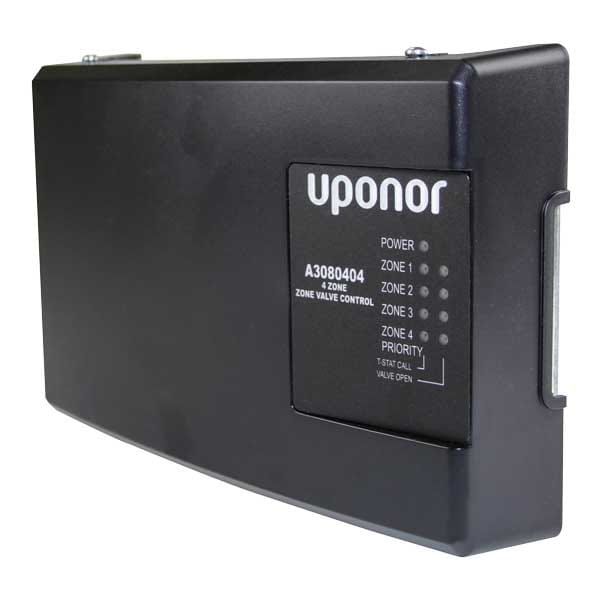

Uponor’s Powered Four- and Six-zone Controllers feature transformers for low-voltage operations and relays to operate line voltage controls. Includes wiring instructions.
Powered zone controllers include transformers for low-voltage operations and relays to operate line-voltage controls. Fully fuse-protected, they also include an isolated end switch and built-in domestic hot water (DHW) priority switch. The indicator lights show full functionality of the products wired to the controllers. A three-amp delay fuse protects four-zone controllers. A seven-amp delay fuse protects six-zone controllers.
Name | Status | Detail | ||
---|---|---|---|---|
Phaseout | Download submittal | productFamilyDetail/tab/itemDetails/detailLink | ||
Phaseout | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
Uponor’s Powered Four- and Six-zone Controllers feature transformers for low-voltage operations and relays to operate line voltage controls. Includes wiring instructions.
