Quik Trak

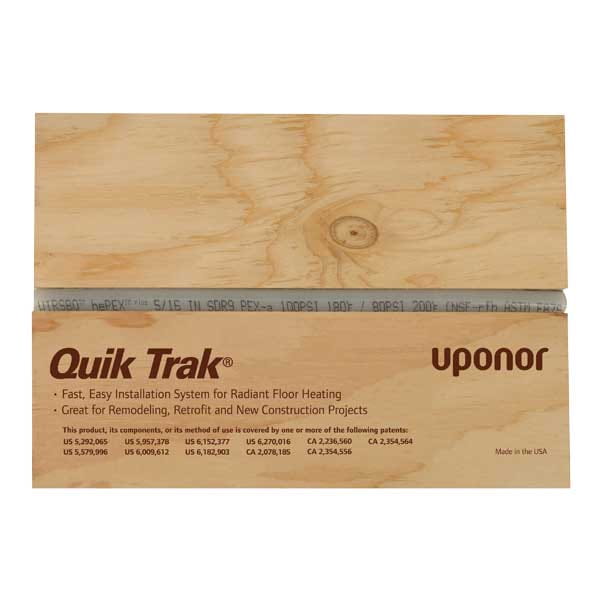

Quik Trak® 1⁄2" x 4' plywood panels are attached to a 30-gauge aluminum heat transfer sheet. Use with 5/16" Wirsbo hePEX tubing only. A fully assembled set consists of six panels fastened together with strapping tape. The panels are staggered (2") on both ends to aid alignment.
Find a distributor
Availability of specific products varies by distributor.
Item details
| Name | Status | Detail | ||
|---|---|---|---|---|
| Active | Download submittal | productFamilyDetail/tab/itemDetails/detailLink | ||
| Active | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
Documents
Technical manual
Similar products
Xpress Trak
Designed for residential new construction and remodels, Xpress Trak™ is a radiant panel that features lightweight XPS foam laminated with aluminum for exceptional heat-transfer capability. Straight runs and return bends are integrated into one panel for quick, easy ordering. To install, simply adhere the panels to a wood subfloor or a concrete slab.
Fast Trak
Fast Trak™ is the ideal overpour installation method for remodel and retrofit applications. The preformed knobbed mats make it easy to install Uponor PEX tubing for radiant floor heating applications. Fast Trak 0.5 is only 1⁄2" thick, eliminating the need to alter baseboards, moldings or doors. The product is made for 5/16" Wirsbo hePEX pipe and features an adhesive backing for easy installation to a slab or subfloor. Fast Trak 1.3i is slightly over 11⁄4" in height. Fast Trak 1.3i uses 3⁄8" or 1⁄2" Wirsbo hePEX pipe and includes insulation already in the mat, eliminating the added time and cost of installing insulation under the tubing. Fast Trak edge strips are required to prevent overpour from seeping under the panels and to protect the surrounding substructure from moisture damage and expansion forces.
Joist Trak
Joist Trak™ extruded, 16-gauge aluminum heat transfer panels use 3⁄8" or 1⁄2" Uponor PEX in floor joist applications. Each panel is 4' x 31⁄2" and comes packaged 20 per box. They provide easy installation, increased heat transfer and superior comfort.Note: Screws not included.
Quik Trak combo panels
Quik Trak combo panels simplify installations when multiple tubing runs are needed in a tight space back to the manifold. Each panel is shipped with a separate aluminum sheet for installation beneath the panel. Use with 5/16" Wirsbo hePEX tubing only.
