Ecoflex installation kit instruction sheet
Instructions for installing straight, elbow and tee insulation kits for Uponor Ecoflex pre-insulated piping systems.

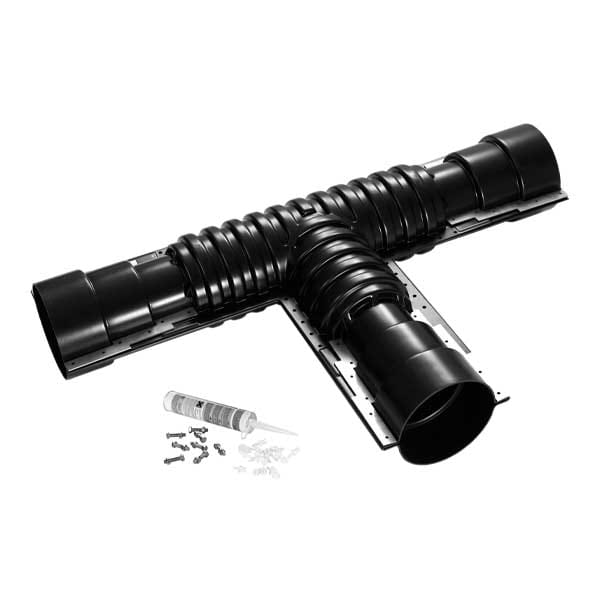

All pre-insulated pipe systems insulation kits make insulated connections of single or twin-style Ecoflex pre-insulated pipe with a jacket size of 5.5", 6.9" and 7.9". The kits feature two shells, stainless-steel bolts, plastic pins and joint-sealing compound. Note: Uponor ProPEX fittings and EPDM rubber end caps are required at all ends of the piping system to ensure system integrity. Tee insulation kit makes an insulated tee connection of single or twin-style Ecoflex pre-insulated pipe.
Name | Status | Detail | ||
---|---|---|---|---|
Active | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
Instructions for installing straight, elbow and tee insulation kits for Uponor Ecoflex pre-insulated piping systems.
