Climate Control Zoning System II (CCZII) installation and operation manual
Installation and operation manual for Uponor climate control zoning system II (CCZII). Learn how to install and operate the Climate Control Zoning System II.

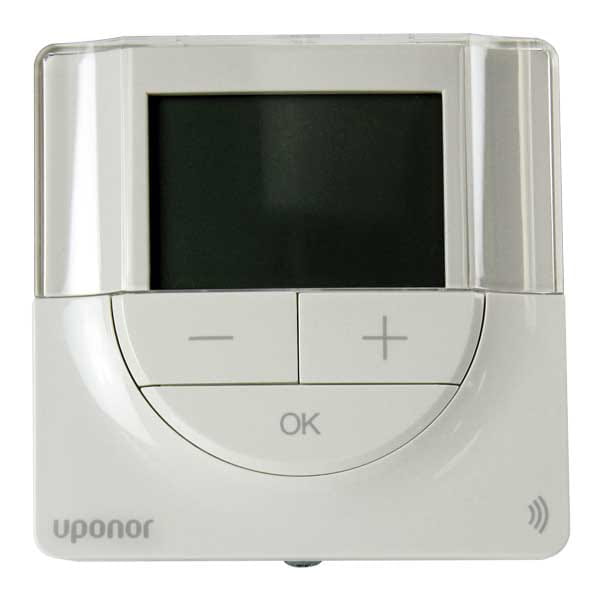

Wireless digital thermostats
Wireless digital thermostats provide total freedom of thermostat placement to ensure the best control of a radiant heating system. The thermostat can send a demand for heating up to 98 ft. to a wireless base unit (through normal construction). The back-lit digital display can be configured to Fahrenheit (°F) or Celsius (°C) and shows when the area is actively heating. The thermostat's setpoint temperature range is adjustable from 41°F (5°C) to 96°F (35.6°C) and it can be used with an optional floor sensor (sold separately). It uses two standard AAA batteries (included) and features a low-battery status. Note: Not compatible with previous A360 Climate Control Zoning System products.
Find a distributor
Availability of specific products varies by distributor.
Documents
Technical manual
Similar products
Slab sensor 10k
For use with Uponor radiant heating system thermostats, including the Climate Control Zoning System II Wireless Digital Thermostat (T-167) (part number A3800167) and the Uponor Heat-only Thermostat with Touchscreen (part number A3100101), the Uponor Slab Sensor, 10k (part number A9010599) senses the slab or floor temperature in radiant floor heating systems and provides temperature limit protection.
Two-wire thermal actuators for EP Heating Manifolds
Two-wire, slow-opening thermal actuators mount directly onto EP heating manifolds to provide individual-loop flow control on a multi-zoned manifold (a manifold serving more than one zone). Note: See actuator-to-manifold compatibility table on page 96.
Single-zone snow melt control accessories
Single-zone snow melt control accessories include various sensors and sensor cups.
SetPoint 521 programmable thermostats
SetPoint 521 programmable thermostats are designed to sense air, floor or both temperatures with the ability to select one or the other as the primary sensing point. The thermostats also include multistage functionality along with programmable schedules.
