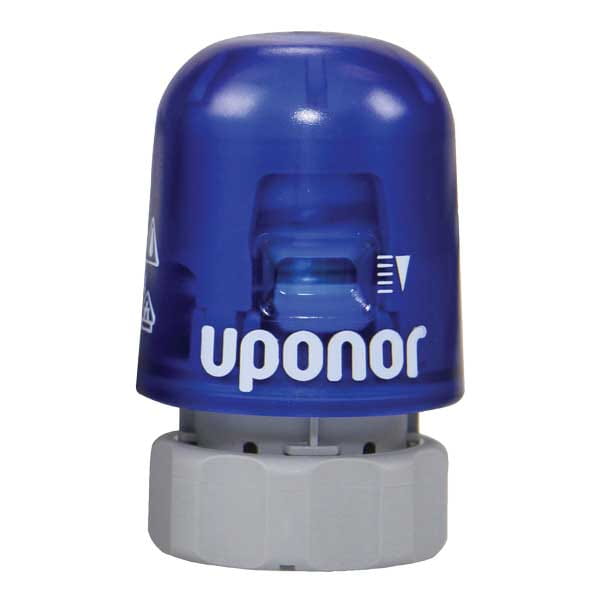

Two-wire, slow-opening thermal actuators mount directly onto stainless-steel heating manifolds to provide individual-loop flow control on a multi-zoned manifold (a manifold serving more than one zone). Note: See actuator-to-manifold compatibility table on page 96.
| Name | Status | Detail | ||
|---|---|---|---|---|
| Active | Download submittal | productFamilyDetail/tab/itemDetails/detailLink |
SetPoint 521 programmable thermostats are designed to sense air, floor or both temperatures with the ability to select one or the other as the primary sensing point. The thermostats also include multistage functionality along with programmable schedules.
Wireless base unit expansion modules easily connect to wireless base units to add an additional six thermostats and six actuators (for a total of 12 thermostats and 14 actuators in the system).Tip: The antenna will need to be disconnected and reinstalled on the expansion module when expanding the number of zones.Note: Not compatible with previous A360 Climate Control Zoning System products.
For use with Uponor radiant heating system thermostats, including the Climate Control Zoning System II Wireless Digital Thermostat (T-167) (part number A3800167) and the Uponor Heat-only Thermostat with Touchscreen (part number A3100101), the Uponor Slab Sensor, 10k (part number A9010599) senses the slab or floor temperature in radiant floor heating systems and provides temperature limit protection.
Heat-only thermostats with touchscreen are designed specifically for radiant floor heating. They use fully automatic differential and pulse width modulation (PWM) to ensure each zone or area is comfortable and energy efficient. The touchscreen provides a simple, intuitive display with large, easy-to-read numbers. The thermostat can control room temperature through operative temperature sensing, an optional floor sensor or a combination of both. The floor sensor can be used to maintain warm floors throughout the heating season as well as provide temperature limit protection. The thermostat is designed to operate using two wires, making it simple to install and service.
